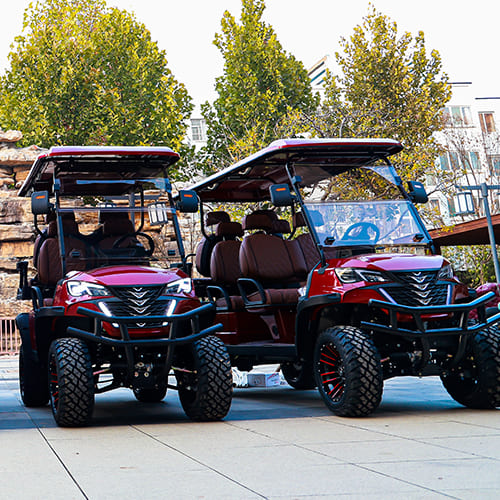

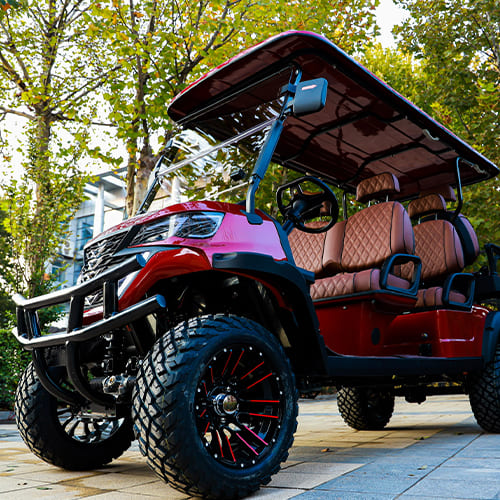

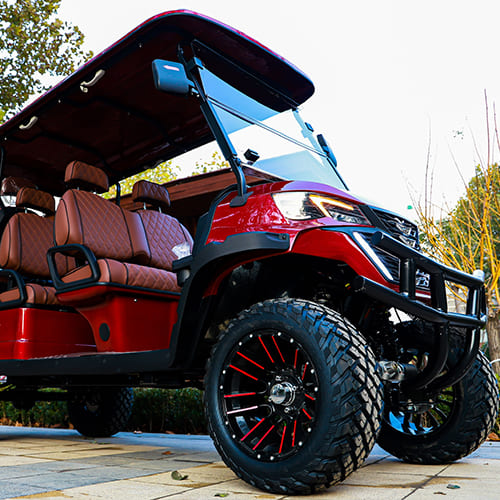

4+2 Seater Electric Golf Cart
Technical Specifications
| Seating Capacity | 4+2 Seater |
| Vehicle Dimension（L*W*H） | 3650*1280*2000 mm |
| Passenger | 6 people |
| Max Speed | 40 km/h |
| Braking distance | 4 m |
| Driving Mileage | 80-100km |
| Grade Ability | 25° |
| Curb weight | 690kg |
| Wheelbase | 2460mm |
| Front wheelbase | 720mm |
| Rear wheelbase | 820mm |
| Minimum ground clearance | 240mm |
| Motor | 5KW |
| Controller | HERCULES Fully intelligent controller |
Construction & Material
Complete steel component: With laser rust removal * electrophoresis * high density spray process, the whole vehicle service life is longer and stronger.
Chassis: Q235 High strength international carbon steel (single layer steel thickness 3MM)
Chassis main beam: Integrated molding process without any welding
Spray painting process: Implement the automobile painting standard, 4-5 coats of paint spraying
Vehicle line: All lines of the vehicle are equipped with waterproof technology and waterproof packaging * to effectively protect circuit damage
Vehicle Body: PP hard plastic front body + PP hard plastic rear body
Ceiling: Engineering hard plastic
Seat belt: Two-point self-retractable seat belt
Headrest seat: Styling sponge cushion + artificial leather (high elastic self-healing, waterproof, sharp-scratch resistant)
Steering wheels:
a. Water transfer carbon fiber steering wheel
b.The steering wheel bracket has the function of self-adjusting driving Angle
Carpet: Anti-slip floor mat
Display: Multi-function smart instrument (USB·battery capacity display, radio, Bluetooth connection, Carplay support and other functions)
Coaster: 4 pieces
Wheel eyebrow: PP hard plastic
Electronic Control System
| Lighting system and speakers | 2 headlights, 2 front turn signals, front LED lights, 2 LED taillights (each taillight consists of 1 brake light and 1 turn signal), horn. |
| Reverse alarm | there are |
| Speaker | there are |
| Charger | Smart charger |
Driving Steering System
| Vehicle steering system | Self-adjusting rack and pinion |
| Braking system | Four-wheel disc brakes |
| Front Suspension | Elevated McPherson independent |
| Rear Suspension | Corbel suspension |
| Tire Type | 14 inch off-road tires or 14 inchTurf tires |
| Body color | https://www.ralcolor.com/ (Any colors from the website are acceptable.) |
Application
The 4+2-seat golf cart is commonly used in golf courses, resorts, private properties, industrial parks, tourist attractions, airports, parks, and commercial complexes for easy transportation.
