Vehicle model： FD005C-2+2

Overall dimensions (LWH)： 2900*1350*2080 (mm)

Passenger capacity ：4 people

Maximum speed： 45 km/h

Braking distance： ≤4m

Driving Mileage：100-120 km

Gradeability： 25%

Curb weight： 600 kg

Wheel track： 900 mm

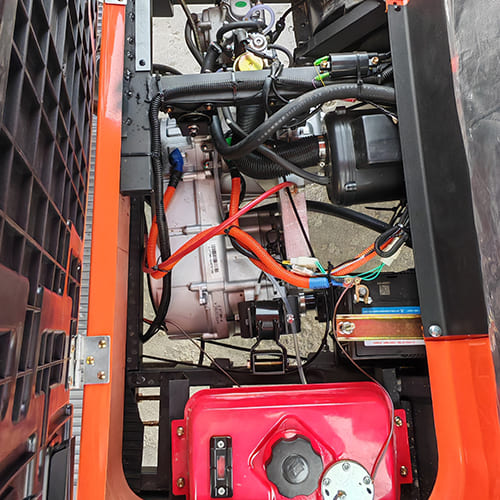

Engine model ：JL1P73MN-4

Type ：Single cylinder, four-stroke, water-cooled 300CC / Durable GY6 300CC, four-stroke, single cylinder, water-cooled

Cylinder diameter ：72.5mm

Piston stroke 66.8mm

Compression ratio ：10:1

Maximum power ：13KW

Maximum torque ：22N·m

Minimum no-load stable speed： 1500 r/min

Drive system ：RWD (Rear Wheel Drive)

Front suspension： MacPherson independent suspension

Rear suspension： Integrated rear axle + high-strength steel plate spring + cylindrical hydraulic shock absorber

Braking system： Dual-circuit hydraulic brake, parking brake device / front disc brake, rear drum brake + Brake, accelerator, aluminum alloy integrated pedal

Tire ：14-inch off-road tires

Steering system: Rack and pinion type steering machine

Light & signal: Combined headlights, turn signals, combined rear lights, electric horn

Seat: Foamed sponge + high-rebound PU leather fabric

Instrument board: Electric meter, forward and back switch

Body material: Steel frame + ABS engineering plastic molding parts

Body color: White / yellow / gold / green / support custom colors

Application

The 2+2-seat golf cart is commonly used in golf courses, resorts, private properties, industrial parks, tourist attractions, airports, parks, and commercial complexes for easy transportation.

For single unit packaging(LCL）, we use iron frames and composite boards.

For full container load (FCL), we use iron frame fixed packaging and load them directly into the container.
